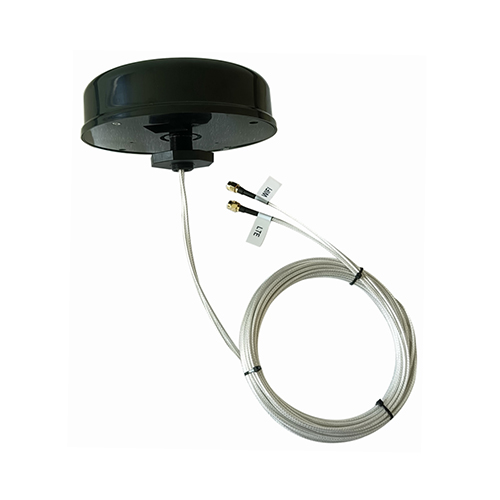

| TQC-0670G6×2G | |||||
| Application | |||||
| · 2-lead Antenna - 1×LTE 617-7125MHz, 1×GNSS 1562-1612MHz · High gain, Stable · Light weight, Small size · The connector is with a pigtail · UV stable radome, Strong adaptability of environment | |||||
| Electrical specifications | |||||
| Type | LTE | ||||
| Frequency Range(MHz) | 617-698 | 698-960 | 1710-2690 | 3300-4200 | 4900-7125 |
| Peak Gain(dBi) Excluding Cable | 2.5 | 4 | 6 | 6 | 4.5 |
| VSWR | ≤2.2 | ≤2.0 | ≤2.0 | ≤1.8 | ≤2.0 |
| Maximum Power (W) | 20 | ||||
| Impedance (Ω) | 50 | ||||
| GNSS/GPS Antenna Specification | |||||
| Frequency Range(MHz) | 1562-1612 | ||||
| Peak Gain(dBi) Excluding Cable | 4.5 | ||||
| Operating Current(mA) | 15 | ||||
| Out of band rejection(dB) | ≥40 | ||||
| VSWR | ≤2.0 | ||||
| Operating Current-mA | 15 | ||||
| Impedance (Ω) | 50 | ||||
| Gain:LNA（dBi） | ≥26 | ||||
| Noise Figure(dB) | ≤3 | ||||
| Voltage Supply(V) | 3.3-6 | ||||
| Mechanical specifications | |||||
| Connector | LTE:SMA male / GNSS: SMA male | ||||
| Exposed cable(cm) | 305 | ||||
| Dimension-mm | (Φ145×40) ±1.5 | ||||
| Antenna Weight (g) | 260 | ||||
| Radome Color | Black | ||||
| Cable | RG316 | ||||
| Cable Color | White | ||||
| Application | IP66 | ||||
| Operating Temperature-℃ | -40～+85 | ||||
| Operating Humidity-% | 5～95 | ||||
